Kopal® Mini Clamps

Measurements Available: Inch, Metric

OK Clamps

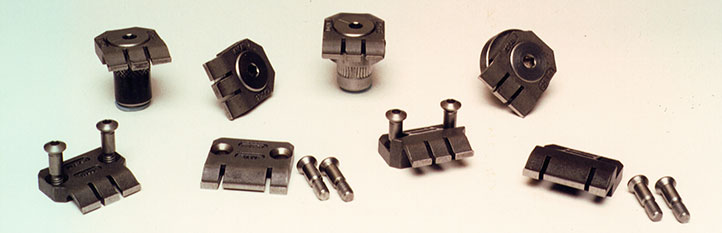

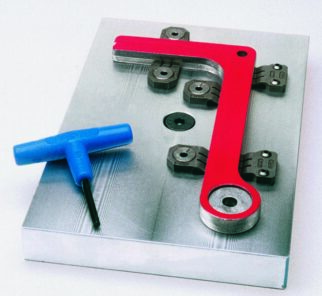

KOPAL® Mini Clamps

These low profile cam action clamps and stops have a holding force of 880 lbs. (3900N.) and have fingers that push the workpiece down before clamping, even on castings that have negative draft!

Ground stops are mounted with special screws to ensure high precision locating.

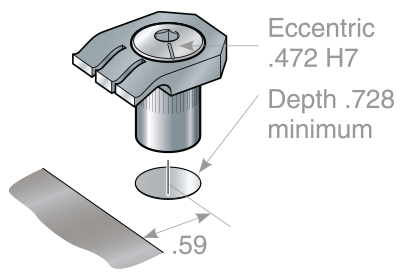

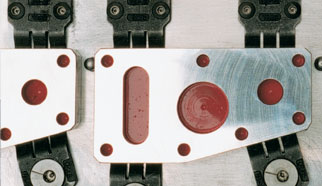

CAM ACTION CLAMPS

The clamping element rotates around the eccentric insert that provides clamping in all directions. Clamping range: .047 (1.2mm). Made of spring steel.
Low Profile Clamp Raised Clamp
Part
No.
Clamping
Height
Max.
Torque
25210 .100
(2.5mm)
6.6 Ft. Lbs.
(8.95 N.m.)
Part
No.
Clamping
Height
Max.
Torque
25215 .300
(7.5mm)
6.6 Ft. Lbs.
(8.95 N.m.)

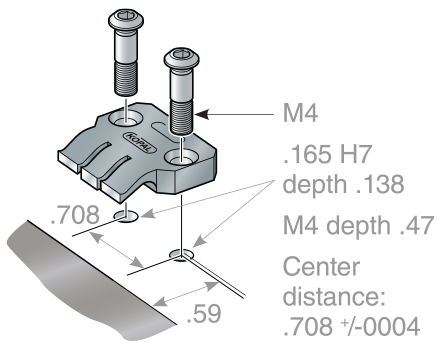

Stops/Locators

The single stop with only one rigid stop is used for pieces over 1.75″ (44.5mm) long. The double stop with 2 rigid stops are used for small size pieces. Both are made of spring steel.
Single Stop Double Stop
Single Stop Double Stop
Part
No.
Jaw
Height
25105 .100
(2.5mm)
Part
No.
Jaw
Height
25110 .100
(2.5mm)

Stops/Locators

Raised Single Stop Raised Double Stop
Raised Single Stop Raised Double Stop
Part
No.
Jaw
Height
25115 .300
(7.5mm)
Part
No.
Jaw
Height
25120 .300
(7.5mm)

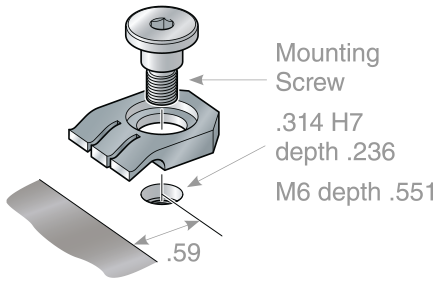

Stops/Locators

Swivel Top Raised Swivel Top
Swivel Stop Raised Swivel Stop
Part
No.
Jaw
Height
25125 .100
(2.5mm)
Part
No.
Jaw
Height
25130 .300
(7.5mm)

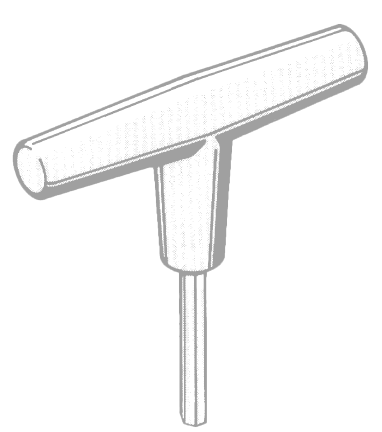

Clamping Key
