Series-9 Clamps

Measurements Available: Inch, Metric

Series-9 Clamps

Series-9 Clamps

This adjustable low profile, cam action clamp provides clamping of different size workpieces merely by rotating the clamp to one of its other edges. The clamps are .394 (10mm) high and use a 1/2-13 (M12) cam screw. Each of the six clamping surfaces is a different distance from the centerline by .0394 (1mm) as shown in the chart. Therefore, one Series-9 Clamp can hold parts that vary up to 0.1968 (5mm) simply by rotating the clamp to a different clamping surface.

  • Serrated or smooth edges
  • Heat treated and plated
  • 4,000 lbs. (17800 N.m.) holding force

Part Numbers Use Screw Size Clamp Travel Maximum Torque Holding Force Replacement
Cam Screw
Inch 90110-90145 1/2 – 13 .080 65 Ft Lbs 4,000 Lbs 10374
Metric 95110-95145 M12 2.03mm 88 N.m. 17,800 N. 50371

Inch

Part Number   Description Face Number Distance From CL
90110 CAD 1-6 Smooth 1 .4724
90115 CAD 1-6 Serrated 2 .5118
      3 .5512
      4 .5906
      5 .6299
      6 .6693

90120 CAD 7-12 Smooth 7 .7086
90125 CAD 7-12 Serrated 8 .7480
      9 .7874
      10 .8268
      11 .8661
      12 .9055
Part Number   Description Face Number Distance From CL
90130 CAD 13-18 Smooth 13 .9449
90135 CAD 13-18 Serrated 14 .9842
      15 1.0236
      16 1.0630
      17 1.1024
      18 1.1417

90140 CAD 19-24 Smooth 19 1.1811
90145 CAD 19-24 Serrated 20 1.2205
      21 1.2598
      22 1.2992
      23 1.3386
      24 1.3780

Metric

Part Number   Description Face Number Distance From CL
95110 CAD 1-6 Smooth 1 12mm
95115 CAD 1-6 Serrated 2 13mm
      3 14mm
      4 15mm
      5 16mm
      6 17mm

95120 CAD 7-12 Smooth 7 18mm
95125 CAD 7-12 Serrated 8 19mm
      9 20mm
      10 21mm
      11 22mm
      12 23mm
Part Number   Description Face Number Distance From CL
95130 CAD 13-18 Smooth 13 24mm
95135 CAD 13-18 Serrated 14 25mm
      15 26mm
      16 27mm
      17 28mm
      18 29mm

95140 CAD 19-24 Smooth 19 30mm
95145 CAD 19-24 Serrated 20 31mm
      21 32mm
      22 33mm
      23 34mm
      24 35mm

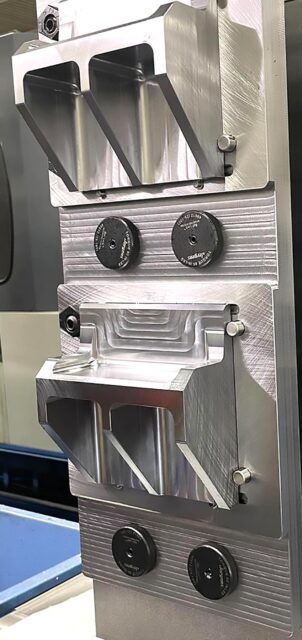

Applications
