Sliding Stop™ & Spring Loc™

Measurements Available: Inch, Metric

sliding_stop_thumb

Spring-Loc™

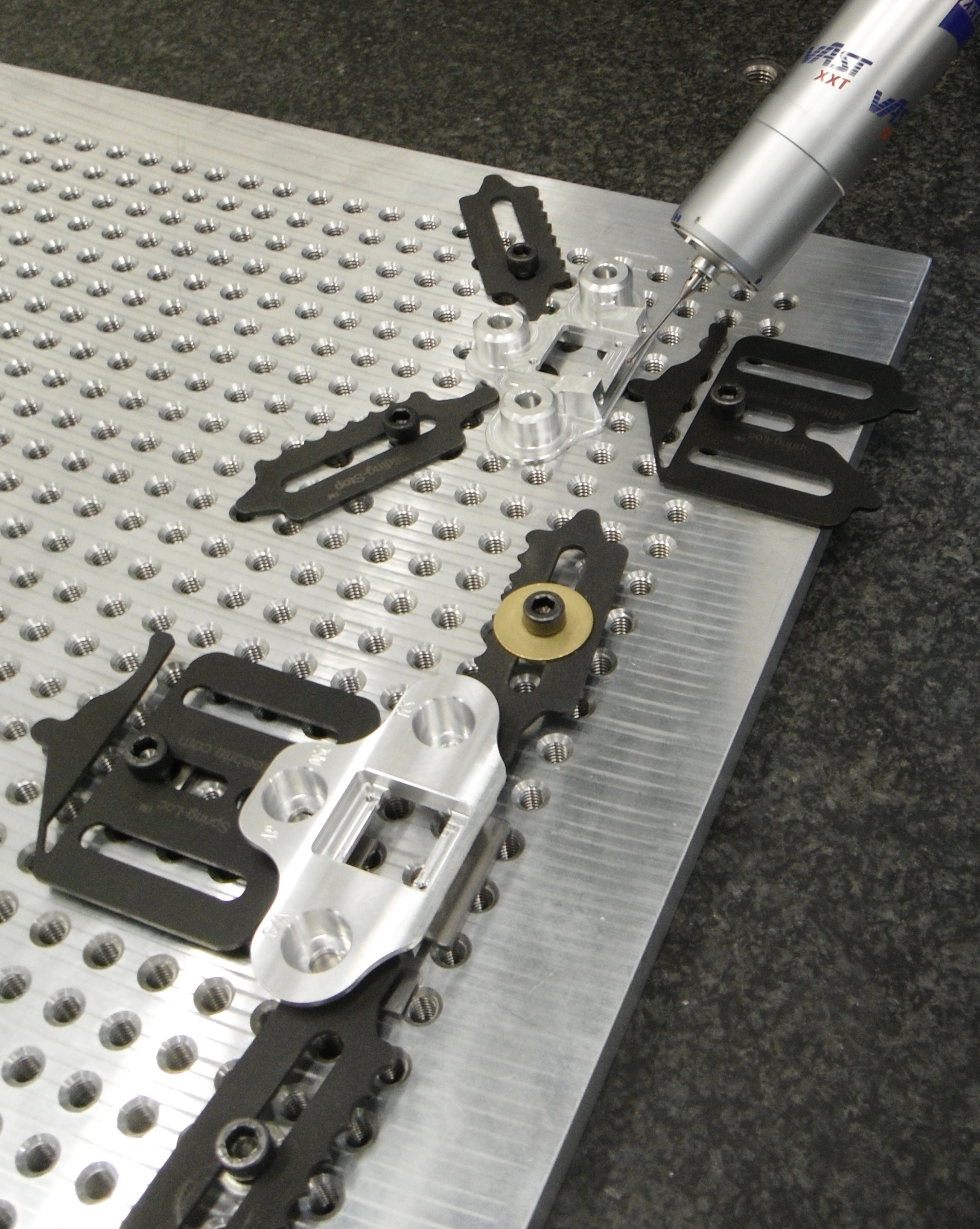

The Spring-Loc™ is an extremely low profile (.072″) adjustable clamp capable of producing approximately 10 lbs. of clamping pressure depending on how much the flex arm is compressed in the locked position. The center slot allows 360° positioning. The back end of the Spring-Loc™ is “V” shaped allowing customers to run parts in series for engraving, laser etching and provides a simple and quick method for locating and holding parts for CMM and Vision Systems.

Sliding Stop™

The Sliding Stop™ was primarily designed to assist in vacuum workholding applications allowing customers to run at higher feeds and speeds. We incorporated a scallop on the edge of the Stop which aids in better viewing with CMM & Vision Systems.

Part Number Description Size Quantity
42000 Spring-Loc™ Kit 1/4-20 *Kit
42100 Spring-Loc™ Clamp 1/4-20 2/pk
42200 Sliding-Stop™ 1/4-20 4/pk
44000 Spring-Loc™ Kit M6 *Kit
44100 Spring-Loc™ Clamp M6 2/pk
44200 Sliding Stop™ M6 4/pk
*Kit includes 4 Spring-Loc Clamps & 4 Sliding Stops

Applications
