T-Slot Toe Clamps

Measurements Available: Inch, Metric

T-_Slot_toe_clamps_2_1

T-Slot Toe Clamps

This clamp is similar the Compact Toe Clamp, only it is designed to be used in the T-slots of machine tables. It provides 4,000 lbs. (17800 N) positive down force while maintaining a low profile. The hardened steel clamping element has both a smooth surface for machined workpieces and a serrated clamping surface for rougher work.






Replacement Parts

Cam Screw Square Washer
INCH 10372 21016
METRIC 50372 51016



Inch

A B C D E F1 F2 Max Torque
Ft/Lbs
Holding Force
Lbs
1.94 1.12 .62 1.00 .38 1.00 .875 65 4,000
F1 – The distance from the top of the back of the washer to the bottom of the clamp body.
F2 – The distance from the top of the front of the washer to the bottom of the clamp body.

Torque mounting bolt to 110 ft. lbs.

Part Number T-Slot
Size
24000 CAD No T-Nut or
Mtg. Screw
24128 CAD 9/16
24148 CAD 5/8
24168 CAD 11/16
24188 CAD 3/4



Metric

A B C D E F1 F2 Torque
(N.m.)
Holding Force
(N.)
50 28.5 15.7 25.4 9.6 25.4 22.2 88.00 17800
F1 – The distance from the top of the back of the washer to the bottom of the clamp body.
F2 – The distance from the top of the front of the washer to the bottom of the clamp body.

Torque mounting bolt to 150 N.m.

Part Number T-Slot
Size
54014 CAD 14
54016 CAD 16
54018 CAD 18
54000 CAD No T-Nut or
Mtg. Screw

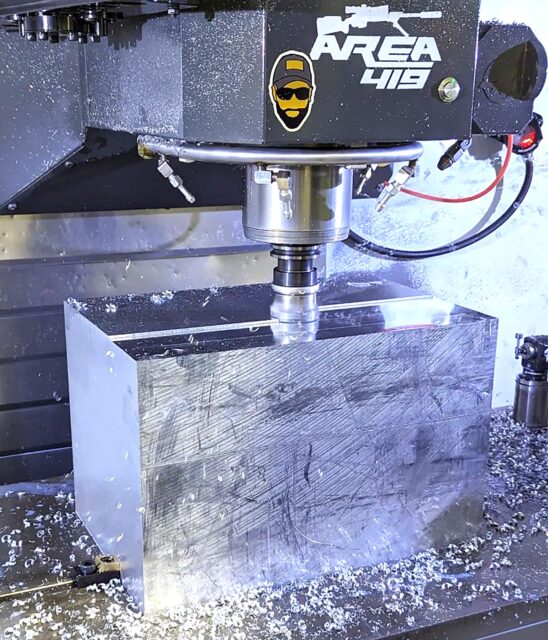

Applications
