Heavy-Duty VersaGrip™

Measurements Available: Inch, Metric

Mitee-Bite Products introduces the new Heavy-Duty VersaGrip™ gripper. Designed for those aggressive operations on harder materials while providing the versatility to hold just about any shape you can imagine! Standard gripping height (.200″) or elevated workpiece for cutter clearance around jaws by resting part on the Original VersaGrip™ gripper or custom made pucks in the Versa pockets. Rotatable, flat, Serrated top face for additional holding force in horizontal pockets in jaws or hard stops.

Maximum Vise Torque per pair of grips (6″ vise): 35-40 Lb/Fts (47.5-54.2 N.m.).

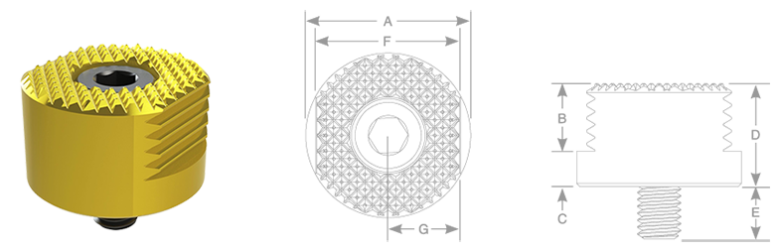

Part No.	Description	A	B	C	D	E	F	G	Screw Size*	Per Pack
32170	Metric HD VersaGrip™	19.02 / 19.05	7.85	4.09	11.94	6.05	16.81	8.41	M5-.08x12mm SHCS	2/pk
33170	Inch HD VersaGrip™	.749 / .750	.309	.161	.470	.266	.662	.331	10-32 x 1/2 SHCS	2/pk

*Mounting Screws included. Metric grips (32170) fit all Mitee-Bite VersaGrip™ Jaw Sets. Inch grips (33170) are for use in fixtures.

Applications

: Image courtesy of ny_machinist “I have no idea why but this was hands down the gummiest, nastiest stainless I’ve ever seen. Had to drop the sfm down to 25 to stop burning up hss drills. Good finishes though once I got the drills figured out. And @lakeshorecarbide leaving great finishes everywhere. I’ve been really appreciative of how consistent their tooling is. Usually I have less than 0.0003” of comp or so to hit dead on. Also been loving the extended grips for these miteebite jaws, just super secure and reliable. Looking into a way to mount some to an old 3 jaw chuck to make round stuff a little faster”
