Concentric OD Clamp

Measurements Available:

collet_wrenches_thumb

New Style OD Clamp Making Innovation Easy

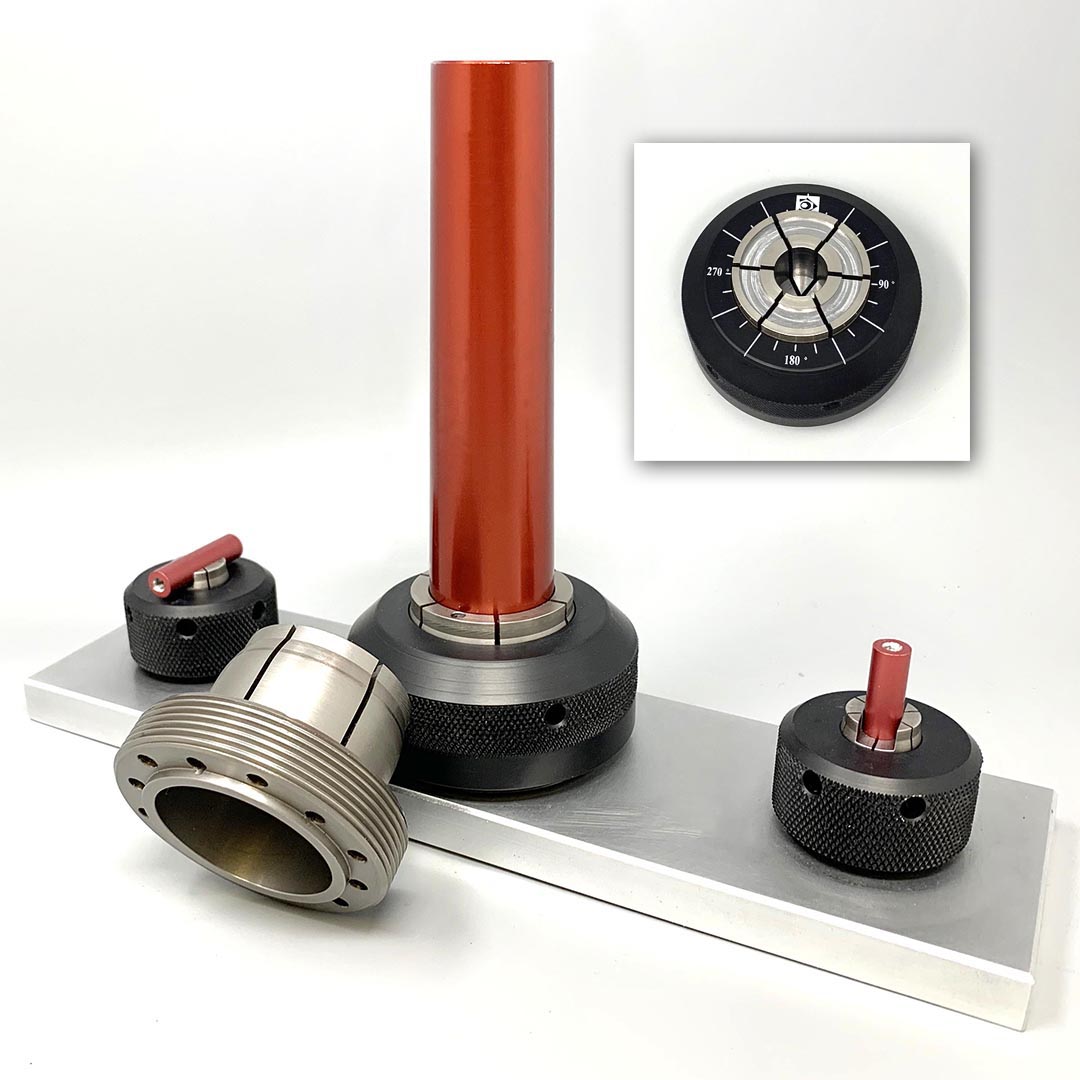

Mitee-Bite Products just completed the design and development of a new style Concentric Outside Diameter (OD) clamping tool. Repeats within tenths, compact for high density application and tough enough to limit yourself to tooling capabilities. This Patent Pending design can be machined, to hold any shape, completely through clamp (“F” bottom chart) and fixture plate as well as gripping workpiece above compression nut. 15° incremental laser engraved indicators on large cap (22.5° on small cap) for applying repeatable torque without torque wrench and for applying preload (15° – 45°) when machining clamps to actual workpiece dimensions. Limited only by your imagination!














collet_wrenches_thumb
Torque = 0° Rotation = Force
Torque (Ft/Lbs) Model #1
(PN 37100)
Degree of Rotation*
Force
lbf
Model #2
(PN 37200)
Degree of Rotation*
Force
lbf
10 43° 650 20° 400
20 66° 1,300 31° 800
30 88° 1.950 37° 1,200
40 111° 2,600 44° 1,600
50 133° 3,250 49° 2,000
60 165° 3,900 53° 2,400
70 56° 2,800
80 60° 3,200
90 65° 3,600
100 67° 4,000

*Beginning with clamp touching part. Every 15° of rotation compresses large clamp .002″
(small clamp .001″) without workpiece installed.

Cap
Model # A B C D
#1 1.000 2.000 .790 .250
#2 1.425 3.500 1.990 .250



Part
No.
Model
No.
A B C D E
(+.000 / -.002)
F G† H I* J Max.
Holding
Diameter
Repl.
Base
Repl.
Cap
37100 CAD #1 1.400 .900 .183 .500 .940 .750 .100 6-32 (M3) on
1.140″ (28.95mm) BHC
.275″ (7mm) Deep .100 .625 37125 37150
37200 CAD #2 1.900 1.275 .200 .625 2.200 1.95 .200 10-32 (M5) on
2.515″ (63.88mm) BHC
.475″ (12mm) Deep .100 1.800 37225 37250

NOTE: (12) Mounting Screws included (inch and metric)
G† – Minimum holding diameter
I* – Minimum tap depth

PATENT PENDING
