Heavy Duty™ T-Slot Clamps

Mitee-Bite Products introduces the Heavy Duty™ T-Slot Clamps – capable of generating over 20,000 pounds of pressure. This design utilizes some of the strongest lowest-profile clamps in the industry. The Pitbull® and OK-Vise® Clamps can be used on the same base with so many configurations you’re sure to have more holding force than needed!

Base and OK-Vise® Configurations

Base includes (3) 16mm tungsten carbide coated t-nuts and mounting screws. Designed to be used with all OK-Vise® DK model clamps (sold separately).


























Pitbull® Clamp Configurations

Includes Base, Pitbull® Clamp, (3) 16mm tungsten carbide coated t-nuts & mounting screws.



Part No. Description
41000* CAD HD™ T-Slot Base ONLY – Order OK-Vise® Clamp separately
47131 CAD OK-Vise® Clamp Model DK2-VT with Serrated Jaws
47132 CAD OK-Vise® Clamp Model DK2-VT-S with Smooth Jaws
47141 CAD OK-Vise® Clamp Model DK2-VT+5S with Machinable and Smooth Jaw
47144 CAD OK-Vise® Clamp Model DK2-VT-TS with Tapped Holes and Smooth Jaw
47147 CAD OK-Vise® Clamp Model DK2-VT-SR with Serrated Jaw and Smooth Jaw
47151 CAD OK-Vise® Clamp Model DK2-WT Double Wedge with Serrated Jaws
47189 CAD OK-Vise® Clamp Model DK2-VT-B with Serrated Ball and Smooth Jaw
41080* CAD HD™ T-Slot Base and M12 Knife Edge Pitbull® Clamp

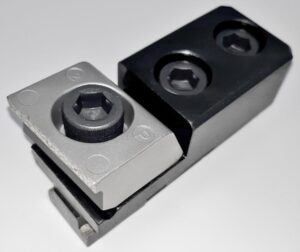

41085* CAD HD™ T-Slot Base and M12 Blunt Edge Pitbull® Clamp
41088* CAD HD™ T-Slot Base and M12 Machinable Pitbull® Clamp

*T-nuts and M12 mounting screws included.



Replacement T-Nuts

Part No. Description T-Slot Size Per Pack
41016 CAD Carbide coated M12 T-nut 16mm 2/pk



Replacement Pitbull® Clamps

Part No. Description Per Pack
56080 CAD Pitbull® Clamp Knife Edge Tool Steel 2/pk
56085 CAD Pitbull® Clamp Blunt Edge Tool Steel 2/pk
56088 CAD Pitbull® Clamp Machinable Tool Steel 2/pk

†NOTE: Clamp contact surfaces have option of application of Texture Grip Tungsten Carbide Coating.
For more information, search “Tungsten Carbide” on our website.
