Machinable Fixture Clamps

Measurements Available: Inch, Metric

OK Clamps

Machinable Fixture Clamps

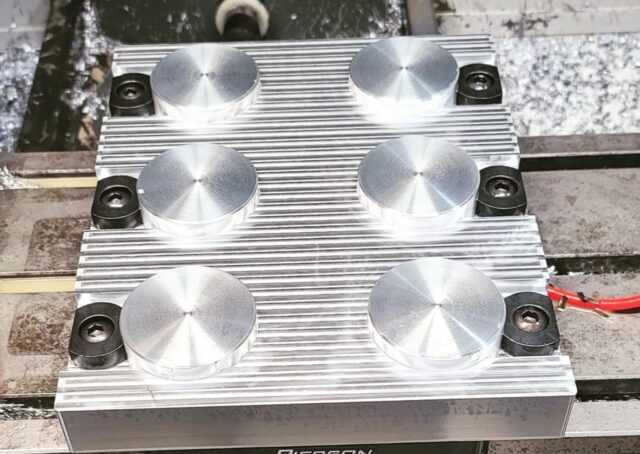

These clamps, with the machinable steel washers, provide more flexibility for holding round or unusual shaped parts. Parts can be held directly to the fixture plate surface or elevated for through-drilling. A special screw is provided with each package to hold the washer in the proper place during machining. The flat edge is the same location as our original fixture clamp. It can be used where a stronger clamping surface is required.

– Low profile

– Made of mild steel for machinability




Inch

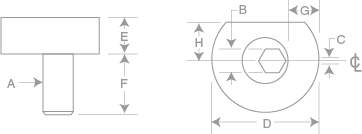

Part No. Desc. A B C D E F G* H† Max
Torque* (ft/lbs)
Holding Force Clamps
per
pack
Repl.
Mach.
Screw
Repl.
Cam
Screw
Repl.
Washer
10504 CAD MB-4 1/4 – 20 1/8 .040 .980 .250 .470 .250 .308 6.2 800 lbs 4 10704 10365 10604
10506 CAD MB-6 3/8 – 16 3/16 .050 1.230 .350 .710 .275 .400 20.8 2,000 lbs 4 10706 10371 10606
10508 CAD MB-8 1/2 – 13 5/16 .100 1.480 .450 .900 .300 .500 65.0 4,000 lbs 4 10708 10373 10608
10510 CAD MB-10 5/8 – 11 3/8 .100 1.730 .550 1.125 .350 .590 100.0 6,000 lbs 4 10710 10375 10610
G* – Amount of machinable stock
H† – The distance to drill & tap hole from edge of workpiece to use flat face.
Every package includes one machining screw.
*Maximum torque is not necessary. Normally half that value is sufficient.



Metric

Part No. Desc. A B C D E F G* H† Max Torque* (N.m.) Holding Force Clamps per pack Repl. Mach. Screw Repl. Cam Screw Repl. Washer
50506 CAD MB-6M M6 4M 1.01 24.9 6.4 11.9 6.4 7.8 8.50 3358 N. 4 50806 50365 10604
50510 CAD MB-10M M10 7M 1.52 31.2 8.9 18.0 7.0 10.2 28.00 8900 N. 4 50810 50369 10606
50512 CAD MB-12M M12 8M 2.03 37.6 11.4 22.9 7.6 12.7 88.00 17800 N. 4 50812 50371 10612
50516 CAD MB-16M M16 12M 2.54 43.9 14.0 28.6 8.9 15.0 135.00 26700 N. 4 50816 50373 10610
G* – Amount of machinable stock
H† – The distance to drill & tap hole from edge of workpiece to use flat face.
Every package includes one machining screw.
*Maximum torque is not necessary. Normally half that value is sufficient.
