OK-Vise® Multi-Rail System
Measurements Available:
OK-Vise® Multi-Rail System
The Multi-Rail System is a versatile fixturing system perfect for all machining centers. The addition of the new Speed Stop eliminates the need for the standard Stop (Part No. 47200) to be placed behind clamp. The user can quickly adjust the location of the clamp allowing for different sized parts to be loaded and unloaded faster and more efficiently.
- All sides of a work piece can be machined with two setups
- Multiple work pieces can be clamped on the same area
- The workpiece is always safely fixtured
- Oversized workpieces can also be fastened
- Over 14,000 lbs. of pressure. Perfect for high speed machining

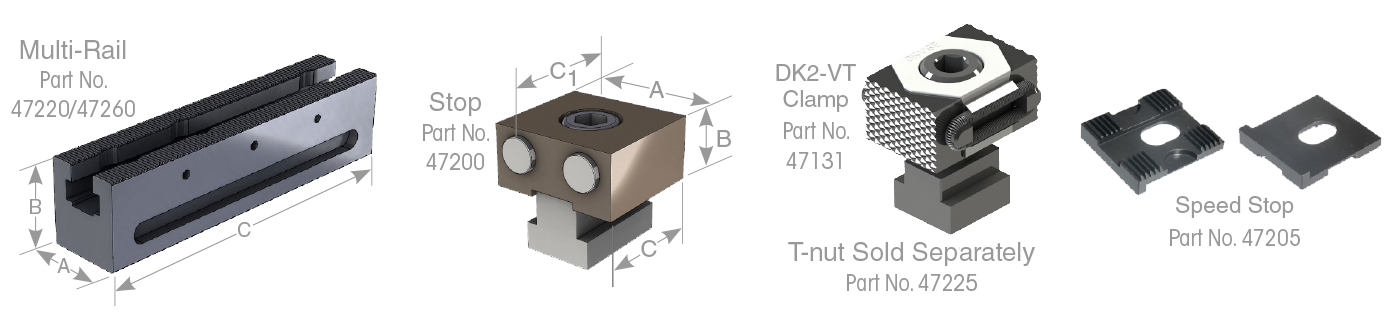

| Part No. | Description | A | B | C | C1 | |
|---|---|---|---|---|---|---|
| 47220 | CAD | Multi-Rail RM200* | 44mm | 50mm | 200mm | |
| 47260 | CAD | Multi-Rail RM600* | 44mm | 50mm | 600mm | |
| 47200 | CAD | Stop Combo Smooth/Serrated with T-nut | 44mm | 22mm | 40mm | 42mm |
| 47225 | CAD | Multi-Rail Custom M12 T-nut | ||||
| 47205 | CAD | Speed Stop |
*Clamps, Stops and Mounting Bolts sold separately. Contact Mitee-Bite for more information.
Jaw Combinations
and the other side to have a serrated one, that’s possible! Special orders don’t upset us!
Contact us for more high holding force options!
Applications
-
- OLYMPUS DIGITAL CAMERA
