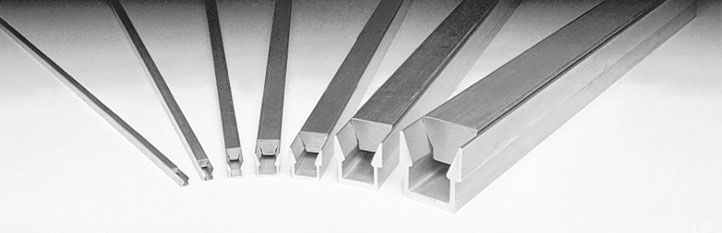

Long Length Uniforce® Channel (7075-T6) & Steel Wedge
Measurements Available:
This material is provided in 20″ (508mm) lengths. Custom lengths available up to 60″ so clamps can be fabricated in different lengths to suit any requirement. Channel and steel wedge are not drilled or plated. For information about the standard Uniforce® Clamp, click here.

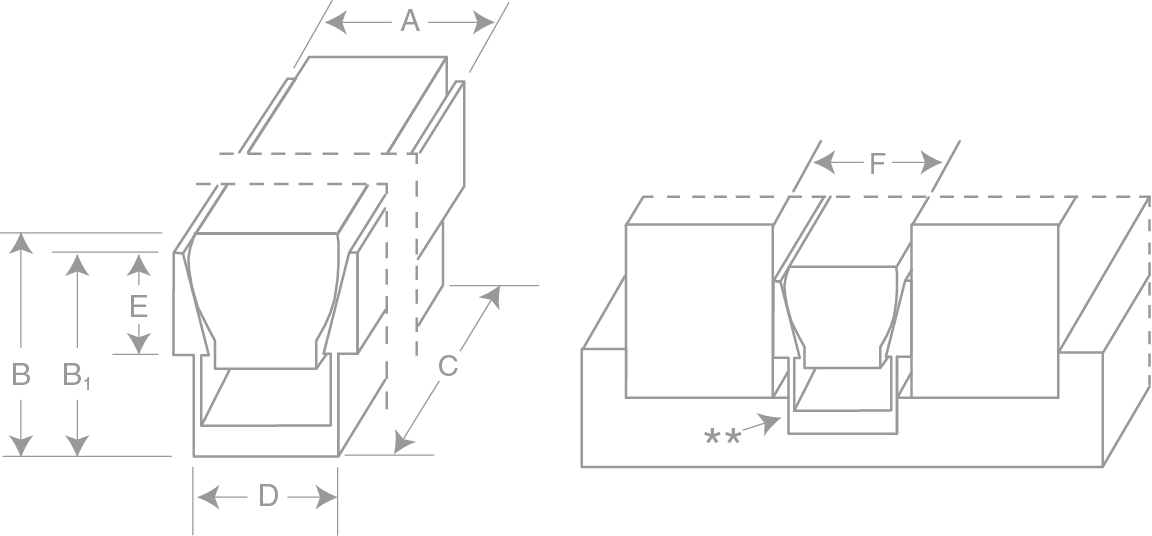

| Part Number |
Description | A (Metric) |
B (Metric) |
B1 (Metric) |
C* (Metric) |
D** (Metric) |
E Metric) |
F† (Metric) |
Maximum Spread (Metric) |
Torque not to Exceed (Ft/Lbs / N.m.) |
Holding Force (Lbs / N.) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62010 | CAD | 250 Channel | .240 (6.1) |
.27 (6.9) |
.250 (6.40) |
20 (508mm) |
.210 (5.3) |
.140 (3.6) |
.250 (6.4) |
.260 (6.7) |
.5 / 0.70 | 200 / 880 |
| 63010 | CAD | 250 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 62020 | CAD | 375 Channel | .360 (9.1) |
.38 (9.7) |
.375 (9.50) |
20 (508mm) |
.310 (7.9) |
.185 (4.7) |
.375 (9.5) |
.390 (10.0) |
1.1 / 1.50 | 310 / 1,350 | 63020 | CAD | 375 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 62120 | CAD | 500 Channel | .485 (12.3) |
.58 14.5) |
.500 (12.70) |
20 (508mm) |
.410 (10.4) |
.220 (5.6) |
.500 (12.7) |
.530 (13.2) |
2.5 / 3.40 | 500 / 2,225 | 63120 | CAD | 500 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 62220 | CAD | 750 Channel | .735 (18.6) |
.77 (19.0) |
.750 (19.05) |
20 (508mm) |
.635 (16.1) |
.375 (9.5) |
.750 (19.0) |
.785 (20.3) |
10.0 / 13.50 | 1,500 / 6,675 | 63220 | CAD | 750 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 62320 | CAD | 1000 Channel | .980 (24.8) |
1.02 (25.9) |
1.000 (25.40) |
20 (508mm) |
.820 (20.8) |
.500 (12.7) |
1.000 (25.4) |
1.050 (26.9) |
19.0 / 25.00 | 2,500 / 11,125 | 63320 | CAD | 1000 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 62420 | CAD | 1500 Channel | 1.470 (37.3) |
1.52 (38.6) |
1.500 (38.10) |
20 (508mm) |
1.215 (30.8) |
.750 (19.0) |
1.500 (38.1) |
1.560 (39.9) |
28.3 / 38.40 | 3,500 / 15,575 | 63420 | CAD | 1500 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 62520 | CAD | 2000 Channel | 1.960 (49.7) |
2.03 (51.5) |
2.000 (50.80) |
20 (508mm) |
1.625 (41.2) |
1.000 (25.4) |
2.000 (50.8) |
2.080 (53.0) |
55.0 / 74.60 | 6,000 / 26,700 | 63520 | CAD | 2000 Steel Wedge | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
C*- Available in custom lengths up to 60” (1524mm)
D**- A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
F†- The distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.
D**- A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
F†- The distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.
Applications

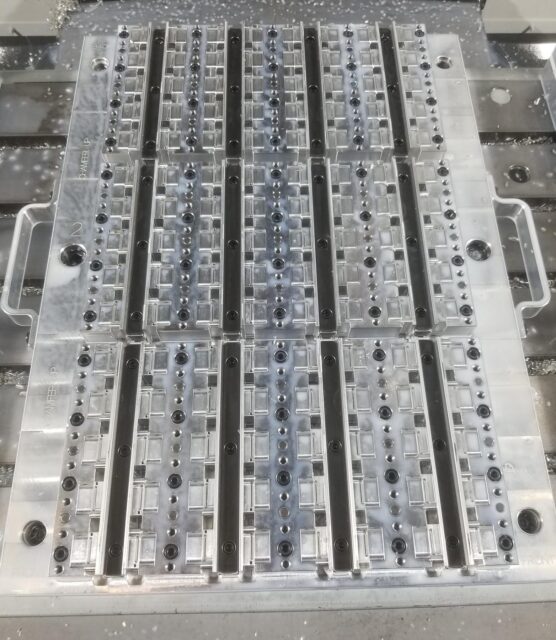

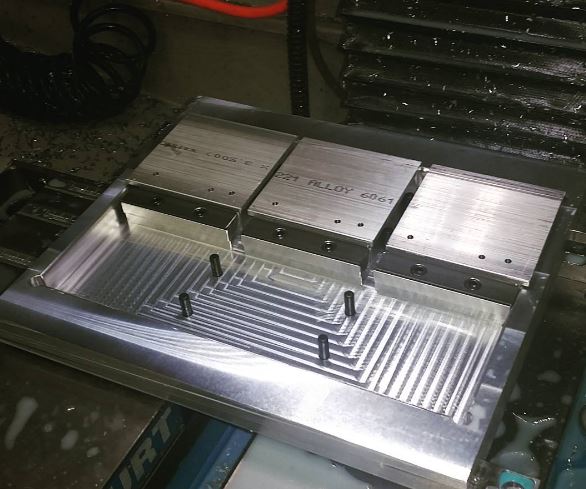

- Peter Stokes – Mitee-Bite Facebook Community – My latest mitee bite fixture. All three have removable top plates located with 4 Mitee Bite ID clamps while operator reloads another set of identical top plates while machine continues to run. 60 complete parts in 2.5 hrs(can speed up the program a bit) with 4 total operations on each part. Fun to design and make.
