Collet Wrenches

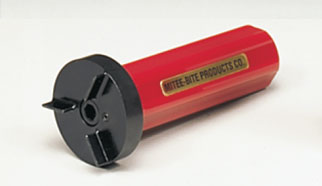

The MITEE-BITE Collet Wrench simplifies insertion and removal of collets in the spindle nose on CNC lathes and is available for 5C (PN1005C), 16C (PN1016C) and 3J (PN1003J) collets.
Manufactured with a steel head and fins for greater strength and durability. Redesigned with a knurled handle for improved grip and includes a cross-hole when additional torque is required, by simply inserting screwdriver to tighten or loosen collets.
| Part No. | Collet Sizes | Fins | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| 1005C | 5C | 3 | 4.25 | 1.25 | .50 | .25 | .28 | 1.25 |
| 1016C | 16C | 3 | 4.25 | 1.75 | .50 | .25 | .50 | 1.25 |
| 1003J | 3J | 4 | 4.25 | 1.75 | .50 | .25 | .50 | 1.25 |
