Compact Toe Clamps
Measurements Available: Inch, Metric
Compact Toe Clamps

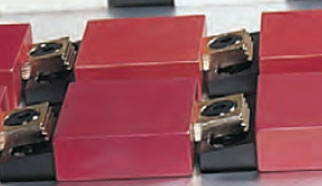

This cam action fixture clamp provides positive down force while using very little space on a fixture. Work pieces can be clamped in series by using the back surface of a clamp to locate the next work piece.
The hardened steel clamping element has both a smooth surface for machined work pieces and a serrated clamping surface for rougher work. The height of the clamp can be adjusted by milling the slot deeper in the fixture plate.
Inch
| Part No. | A | B | C | D | E† | F | G | H | I* | Total Distance of Movement |
Mounting Screws (Included) |
Max. Torque** (ft/lbs) |
Holding Force (lbs) |
Repl. Cam Screw |
Repl. Square Washer |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24106 | CAD | 1.70 | .75 | .50 | 1.00 | .090 | .75 | .25 | .62 | .845 | .050 | 5/16 – 18 x 3/4 LHCS | 20.8 | 2000 | 10370 | 21006 |
| 24108 | CAD | 2.12 | 1.00 | .45 | 1.32 | .110 | 1.00 | .38 | .62 | .960 | .100 | 3/8 – 16 x 3/4 LHCS | 65.0 | 4000 | 10372 | 21016 |
| 24110 | CAD | 2.95 | 1.50 | .99 | 2.00 | .130 | 1.50 | .50 | 1.25 | 1.70 | .100 | 1/2 – 13 x 1 1/4 SHCS | 100.0 | 6000 | 10376 | 21026 |
E† – Distance needed between front of the clamp base & the workpiece.
I* – Distance from the top of the washer to the bottom of the clamp body.
Drill and tap the centerline of “B” for mounting holes.
**Maximum torque is not necessary. Normally half that value is sufficient.
I* – Distance from the top of the washer to the bottom of the clamp body.
Drill and tap the centerline of “B” for mounting holes.
**Maximum torque is not necessary. Normally half that value is sufficient.
Metric
| Part No. | A | B | C | D | E† | F | G | H | I* | Total Distance of Movement |
Mounting Screws (Included) |
Max. Torque** (N.m.) |
Holding Force (N.) |
Repl. Cam Screw |
Repl. Square Washer |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54110 | CAD | 43.2 | 19.0 | 12.7 | 25.4 | 2.3 | 19.0 | 6.4 | 15.75 | 21.5 | 1.2 | M8x16 LHCS | 28.20 | 8900 | 50368 | 21006 |
| 54112 | CAD | 54.0 | 25.4 | 11.4 | 33.5 | 2.8 | 25.4 | 9.7 | 15.75 | 24.4 | 2.0 | M10x20 LHCS | 88.13 | 17800 | 50372 | 51016 |
| 54116 | CAD | 75.0 | 38.1 | 25.2 | 50.8 | 3.3 | 38.1 | 12.7 | 31.75 | 43.2 | 2.5 | M12x30 SHCS | 135.58 | 26700 | 50374 | 21026 |
E† – Distance needed between front of the clamp base & the workpiece.
I* – Distance from the top of the washer to the bottom of the clamp body.
Drill and tap the centerline of “B” for mounting holes.
**Maximum torque is not necessary. Normally half that value is sufficient.
I* – Distance from the top of the washer to the bottom of the clamp body.
Drill and tap the centerline of “B” for mounting holes.
**Maximum torque is not necessary. Normally half that value is sufficient.
