Modular XYZ Xpansion® Pins

Measurements Available:

Modular XYZ Xpansion® Pins

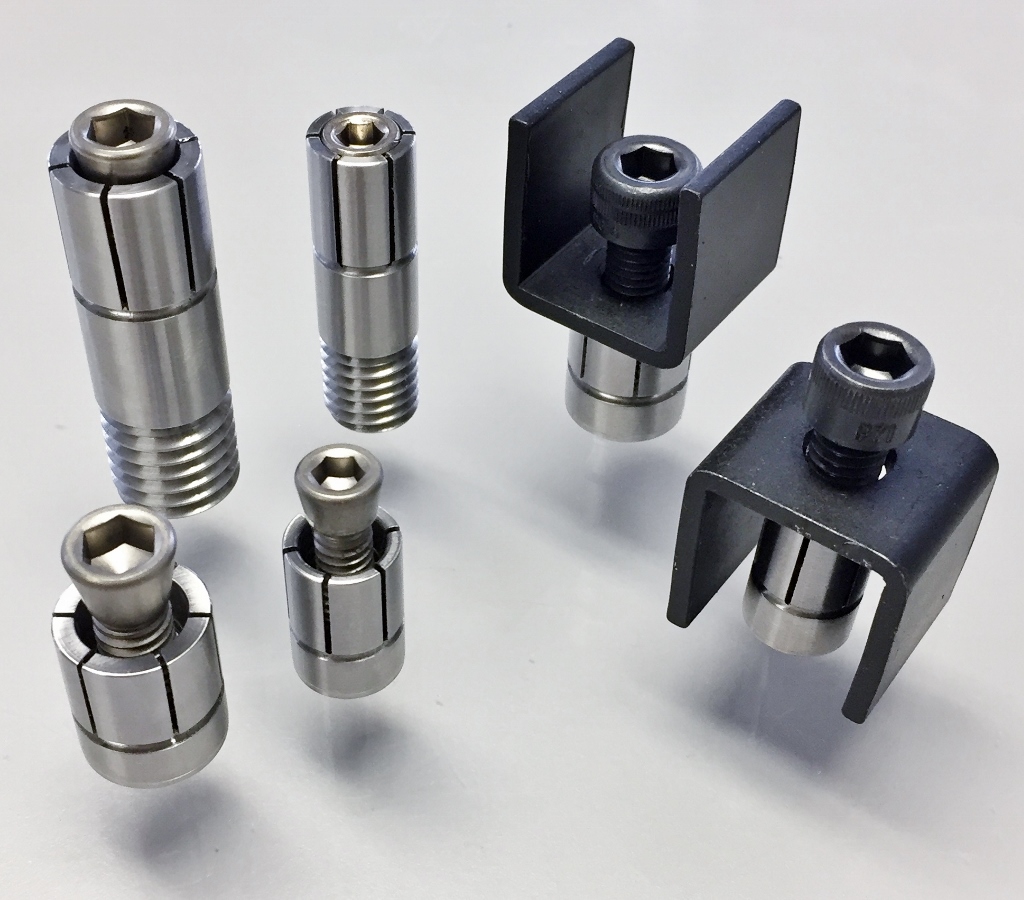

Mitee-Bite Products releases the new Modular XYZ Xpansion® Pins for Tombstone, Grid Plate and Fixture Plate applications. The unique, patent pending design provides accurate location, repeatability and high holding forces for securing parts on the inside diameter. The XYZ Pin provides “out of the way workholding” and accessibility to all work surfaces with absolutely no external clamping interference. The Threaded Pin is available in standard sizes of 1/2, 5/8, M12 and M16 for tombstones and grid plates. The Press Fit Pins are available in 1/4, 3/8, 1/2, 5/8, M6, M10, M12 and M16 diameters for custom applications. Both styles of the pins are manufactured from “heat treatable” 17-4PH stainless steel. The Press Fit Pins are now also available in 12L14 mild steel. The Pins expand up to 0.030″ (0.7mm) and the diameter can be machined for specific applications. The top of the Pins have a slight taper creating maximum line contact in bore and provides clearance during load/unload. Designed for quick set-ups on secondary operations, material coming off prep stations, water-jets or even applications outside of your machining centers!

Threaded Pins

Threaded XYZ Pins (in 17-4PH) incorporate an internal rotary broached hex for simple installation and removal from a tombstone, grid plate or fixture plate. Threaded Pins may be installed in a drilled and reamed hole for precise location or set in a hardened drill bushing for additional strength and wear resistance. To install a Threaded XYZ Pin in a precision bore, drill/tap accordingly and ream the hole over the nominal diameter minimum of +0.0001 to +0.0005″. (+.003 to +0.013mm)

Threaded Pins
Part No. External
Thread
A B C D F (+/-)
.000/.001″
(.000/.025mm)
G* Replacement
Tapered
Screw
Tapered
Screw
Thread x Length
31850 CAD 1/2″-13 1.625″ 0.60″ 0.53″ 0.50″ .500″ 0.413″ 31010 1/4-20 x 1 1/4
38850 CAD M12x1.75 40mm 15mm 13mm 12.00mm 12.00mm 10.5mm 38010 M6-1 x 30mm
31860 CAD 5/8″-11 1.875″ 0.62″ 0.62″ 0.62″ .625″ 0.472″ 31020 5/16-18 x 1 1/4
38860 CAD M16x2.0 45mm 16mm 13mm 16.00mm 16.00mm 12mm 38020 M8-1.25 x 30mm

*G – Minimum diameter pin can be machined or turned down to
** Torque of pin body needs to exceed torque of tapered screw
Tapered screw included with pin












Press Fit Pins

Pins are intended for press fit or close tolerance removable slide fit applications. Install in a precision bore or a bushing with the center threaded for the Tapered screw. If precise location is not necessary, pin can be used on top of fixture plate. An accessory kit is available to make Installation and Removal (I/R) of the XYZ Pins quick and easy.

Note: If recessing pin into fixture beyond slits be sure to provide clearance for expanding segments.

17-4PH (SS)
Part No.
12L14 (Mild Steel)
Part No.
Description A B C D F(+/-) .000/.001″
(.000/
.025mm)
G* Replacement Tapered Screw Tapered
Screw
Thread x
Length
Installation/
Removal
(I/R) Tool Set**
31730 CAD 31630 CAD Press Fit 1/4″ .500″ 0.27″ 0.29″ 0.23″ .250″ .219″ 31731S 5-40 x 5/8 31720
38730 CAD 38630 CAD Press Fit 6mm 13mm 7mm 7.3mm 5.8mm 6.00mm 5.5mm 38731S M3-0.5 x 16mm 38720
31740 CAD 31640 CAD Press Fit 3/8″ .750″ 0.50″ 0.33″ 0.25″ 0.375″ 0.281″ 31002S 8-32 x 7/8 31721
38740 CAD 38640 CAD Press Fit 10mm 19mm 12.7mm 8.4mm 6.35mm 10.00mm 7.5mm 38002S M4-0.7 x 22mm 38721
31750 CAD 31650 CAD Press Fit 1/2″ .750″ 0.50″ 0.45″ 0.25″ .500″ 0.413″ 31010S 1/4-20 x 7/8 31722
38750 CAD 38650 CAD Press Fit 12mm 19mm 12.7mm 11.1mm 6.35mm 12.00mm 10.5mm 38010S M6-1 x 22mm 38722
31760 CAD 31660 CAD Press Fit 5/8″ .750″ 0.50″ 0.52″ 0.25″ .625″ 0.472″ 31020S 5/16-18 x 7/8 31723
38760 CAD 38660 CAD Press Fit 16mm 19mm 12.7mm 13mm 6.35mm 16.00mm 12mm 38020S M8-1.25 x 22mm 38723
NA 31670 CAD Press Fit 3/4″ .875″ .562″ 0.56″ 0.31″ .750″ .625″ 31032S 3/8-16 x 7/8 31724
NA 38670 CAD Press Fit 20mm 22mm 14mm 13mm 8mm 20.00mm 16mm 38032S M10-1.5 x 22mm 38724
*G – Minimum diameter pin can be machined or turned down to
** Set includes screws (2) SHCS
Tapered Screw included with pin



Modular XYZ Xpansion™ Press Fit Pin Installation/Removal Tool Instructions


NOTE: Prepare bore per Modular XYZ Xpansion® Press Fit Pin Instructions.
INSTALLATION:
1. Using smaller SHCS and washer place pin over bore and press into fixture.
2. Remove SHCS and washer and install tapered drive screw. Ready for use.

REMOVAL:
1. Remove the tapered drive screw.
2. Place the puller over the Pin, set larger washer on top.
3. Tighten screw until pin is fully removed from fixture.
4. Capture pin through window slot to remove SHCS.

PATENT NO. 10,458,459
