Machinable Pitbull® Clamps

Measurements Available: Inch, Metric

Machinable Pitbull Clamps

Machinable Pitbull® Clamps

The popular Pitbull® fixture clamp is now available in a machinable version. The clamp has positive down force and a very low gripping profile, making it well suited for machining pieces complete in one set up. The Machinable Pitbull® clamp is made of tool steel and heat treated to about 43RC for long life, yet still machinable.

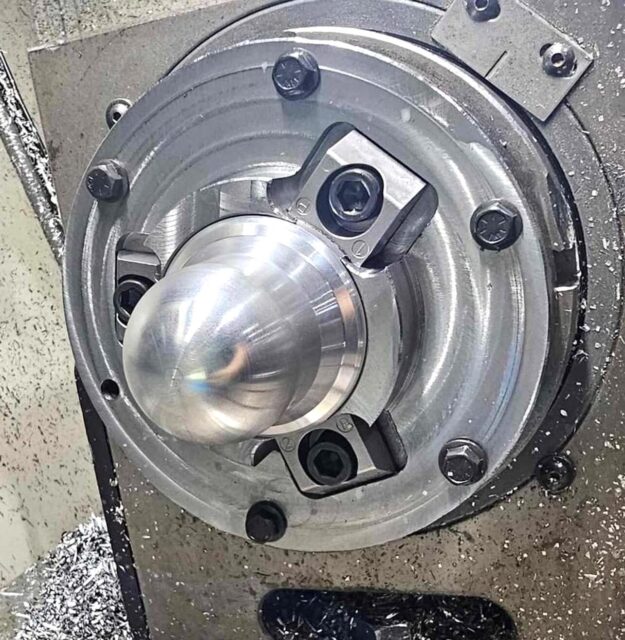

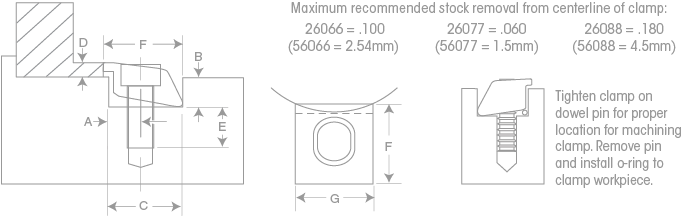

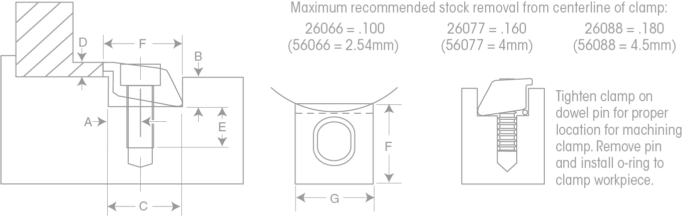

There is additional material on the clamping face to allow for machining a radius. It is available in two sizes with 6,000 and 12,000 lbs (26,000 N. and 50,000 N.) of holding force. A dowel pin is included in each package to locate clamp while machining radius.

Machinable Pitbull Clamp

Inch

Part
No.
Description A B C D* E Clamp
Width
Screw
Size
Holding
Force (Ft/lbs)
Max Torque
(Lbs)
Total
Throw
Dowel
Pin
Clamps
per pack
26077 CAD Tool Steel, Machinable .400 .450 1.00 .250 .710 1.00 3/8-16 30.0 6000 .050 1/8 4
26088 CAD Tool Steel, Machinable .600 .640 1.50 .375 .770 1.50 1/2-13 108.3 12000 .075 1/4 2
* D – minimum clamp height.

Metric

Part
No.
Description A B C D* E Clamp
Width
Screw
Size
Holding
Force (N)
Max Torque
(N.m)
Total
Throw
Dowel
Pin
Clamps
per pack
56077 CAD Tool Steel, Machinable 10.16 11.43 25.4 6.35 18.0 25.4 M10 26,000 40.6 1.27 3.18 4
56088 CAD Tool Steel, Machinable 15.24 16.26 38.1 9.52 19.6 38.1 M12 50,000 145.0 1.90 6.35 2
* D – minimum clamp height.
